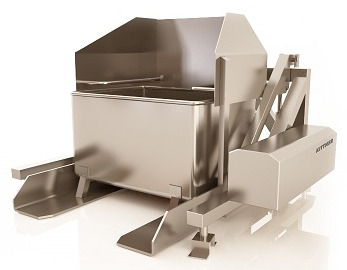

600 Litre Chuted Swing Loader
600 Litre Chuted Swing Loader - Image 2
600 Litre Chuted Swing Loader - Image 3
600 Litre Chuted Swing Loader - Image 4

600 Litre Chuted Swing Loader

Product Code: KR-2471201
Add to Quote
Product Details
    We manufacture our Swing Loaders from 304 Grade Stainless Steel. The Swing Loader is designed to lift 200 and 300 litre Eurobins For 200/300l Eurobins, Dolavs, Box Containers and then discharge in the desired location at the required height. They are fully welded and hygienic to use in the food, meat, dairy and pharmaceutical industry.
    At LS Engineering we offer a service where we will access your current situation and apply a solution to suit your individual needs.
    Our swing loader has an integrated hydraulic power which is operated by up/down button controls.

      We have a range of tipping heights and capabilities available on these swing loaders.

        By using one of our Swing Loading machines you can either remove the process of a person handling the produce. Chuted Swing loaders can be useful for a multi-purpose of uses.

          All our lifting and tipping equipment complies with CE and EU Requirements and USDA regulations and is supplied with full certification.
          Please contact the office for more information or simply click enquire on the product to send a direct email to our sales team.
          Can’t find what you are looking for? We can build it Bespoke!
          We manufacture bespoke solutions so should you see something that is similar or have an idea in mind please contact the sales team who will be happy to help.

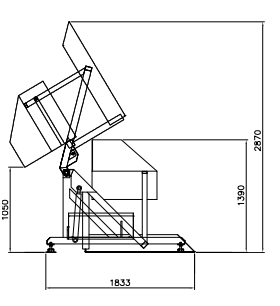

          Technical Data for Standard 1050mm Tipping Height
          Power supply: 400 V 50 Hz
          Control voltage: 24 V DC
          Power consumption: 1,1 kW
          Fuse: 10 A
          Capacity: max. 650 kg
          Tilting time: approx. 20 sec.
          Tilting height: max. 1050 mm
          Total height by tilting: max. 2870 mm
          Machine weight: approx. 400 kg
          Machine dimensions: 1833 x 1808x 1390 mm
          Pallet dimensions: 2150x 2100 x 1600 mm

Additional Information

Weight 400 kg
Dimensions 1808 × 1390 cm
