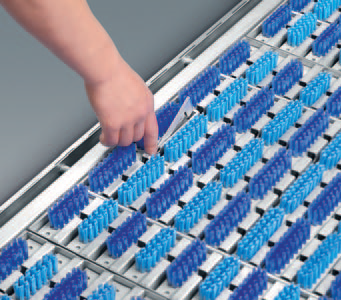

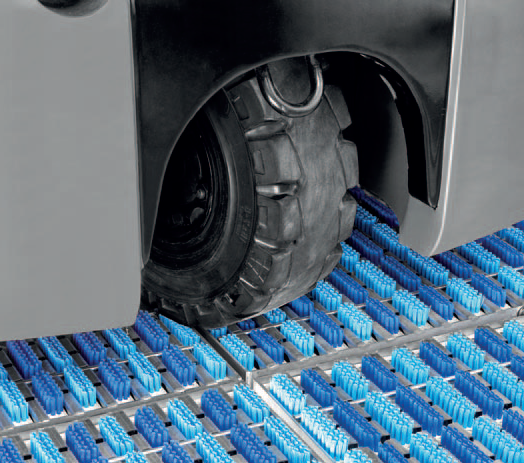

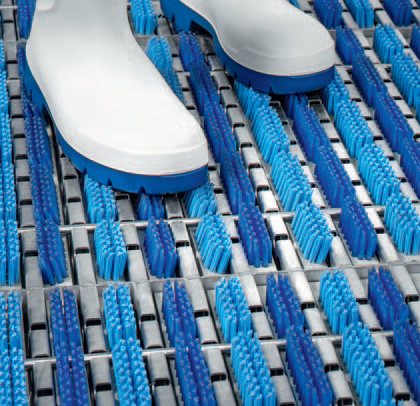

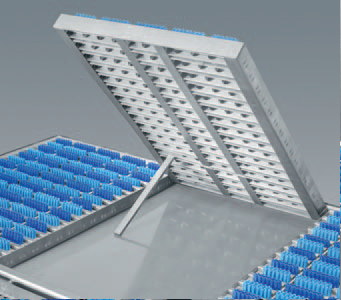

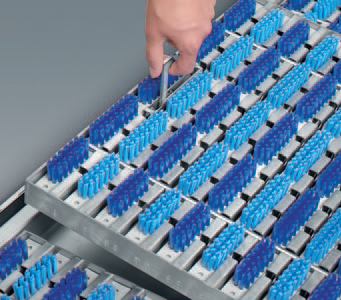

The CLEAN-FIELD pass-through disinfection/cleaning trays with brushes have been developed in order to prevent contamination or dirt carry-over from dirty black to clean white areas or from outdoor to inside areas when transporting goods with vehicles such as pallet trucks or forklift trucks. Presented as a novelty the CLEAN-FIELD optimises hygiene conditions in all areas of food production and processing. Simply by driving or stepping onto the cleaning field, a large number of integrated self-swinging brush elements are immediately set in motion and thus semi-actively (mechanically) clean both castors and wheels of mobile equipments as well as shoe soles – optionally wet or dry.

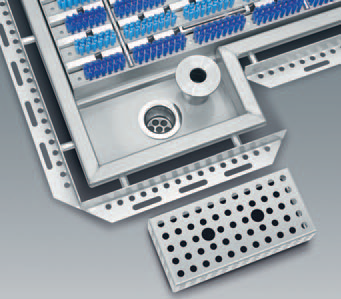

With the wet cleaning option, the system is additionally equipped with an automatic detergent dosing station. It ensures that suf-ficient cleaning or disinfecting liquid is always available. In this case, the cleaning field requires a wastewater connection with odour trap installed on site. Due to the low installation depth of only approx. 60 mm, the systems designed exclusively for floor installation are not only suitable for new buildings but also for a variety of refurbishment projects.

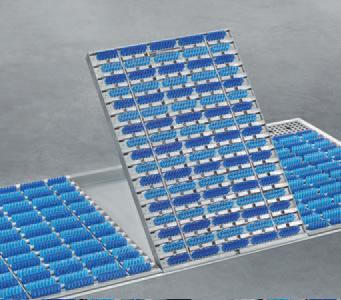

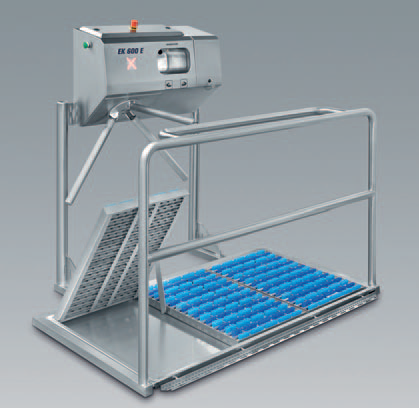

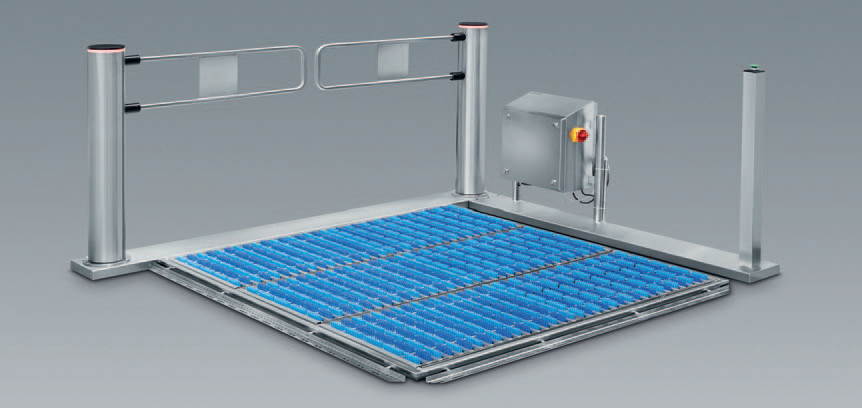

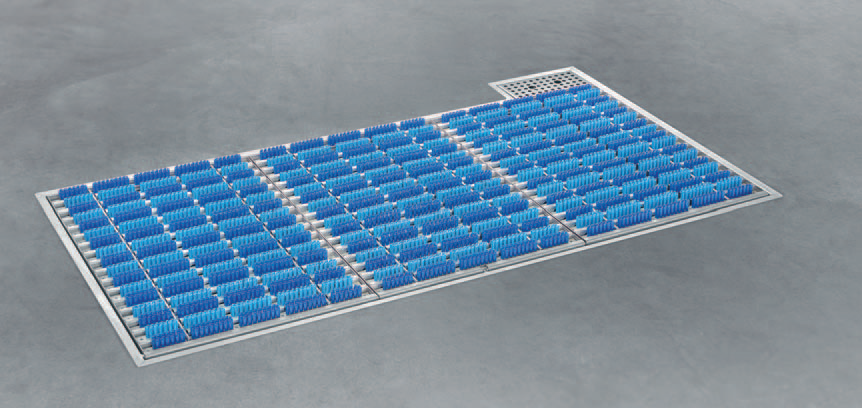

Due to their modular design, the cleaning fields are available in different sizes. They can also be adapted to individual hygiene requirements. If, for example, access control is required, the ad-ditional equipment with an automatic swivel gate is possible. For increased hygiene requirements, further components are available – ranging from hand disinfection or entrance control devices with turnstile to a complete compact hygiene lock. The system only allows access to the downstream hygiene-sensitive areas after all hygiene measures have been carried out.
Technical data CLEAN-FIELD
Dimensions (W x D x H): Different sizes available
Water outlet: DN 50

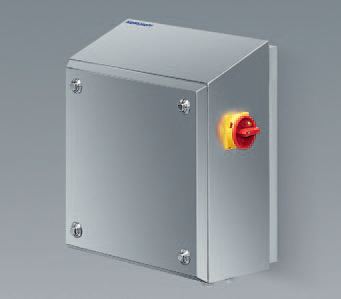

Automatic detergent dosing station
Dimensions (W x D x H): 450 x 200 x 450
Water connection:3/4″ CW
Electrical connection:230 V/N/PE, 50/60 Hz
Please contact the office for more information or simply click enquire on the product to send a direct email to our sales team.
